Orbit Glass Railing System - Glass Balustrades

Balcony Orbit Glass Railing System is a 70mm diameter circular handrail system that provides maximum handrail spans between points of support.

Handrails: 70mm

Posts: 55mm

Public areas posts: 65mm

The Orbit Glass Railing System can be supplied with an internal reinforcing bar that strengthens the handrail in order to enable the handrail to span more.

Technical details and drawings

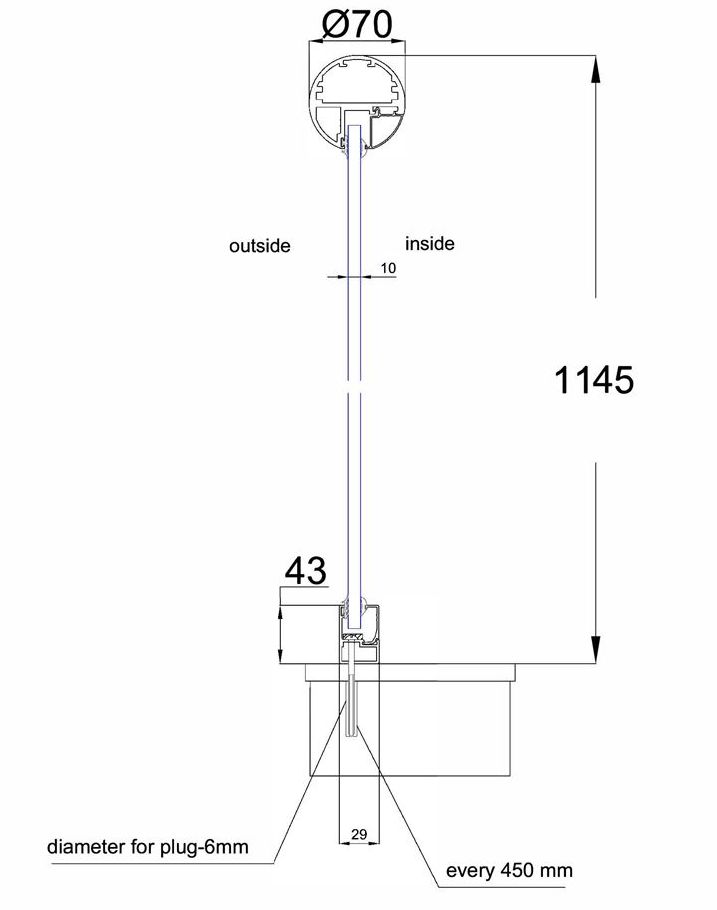

: Glass Balustrade Section

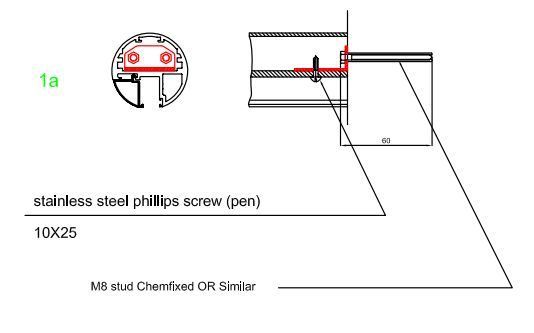

: Orbit System wall bracket (concealed)

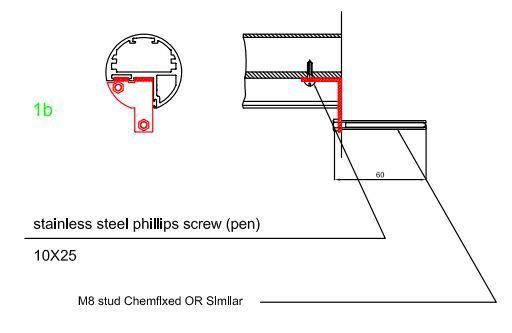

: Orbit System wall bracket (Visable lower fixing)

Typical 3 m elevation of glass balustrade
